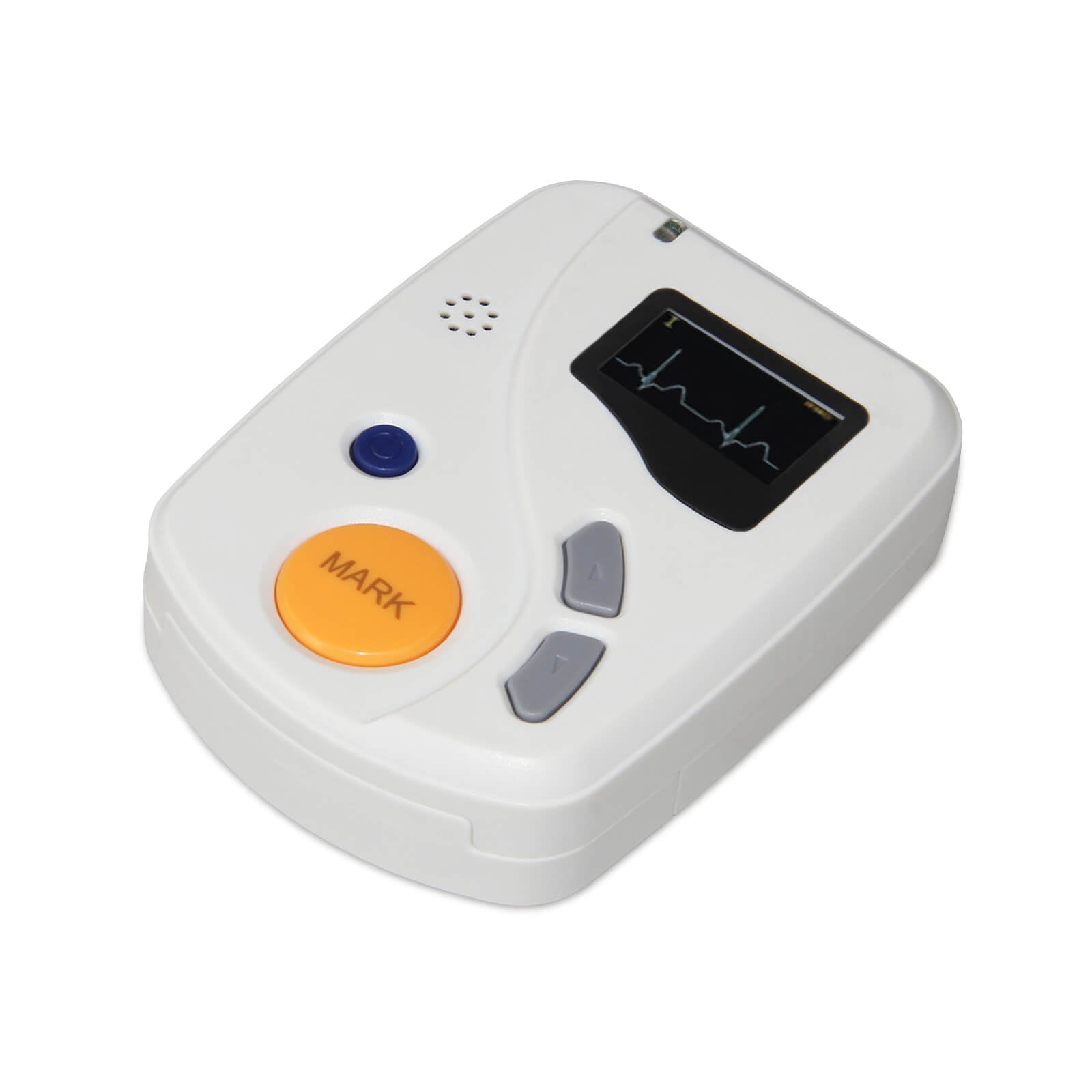

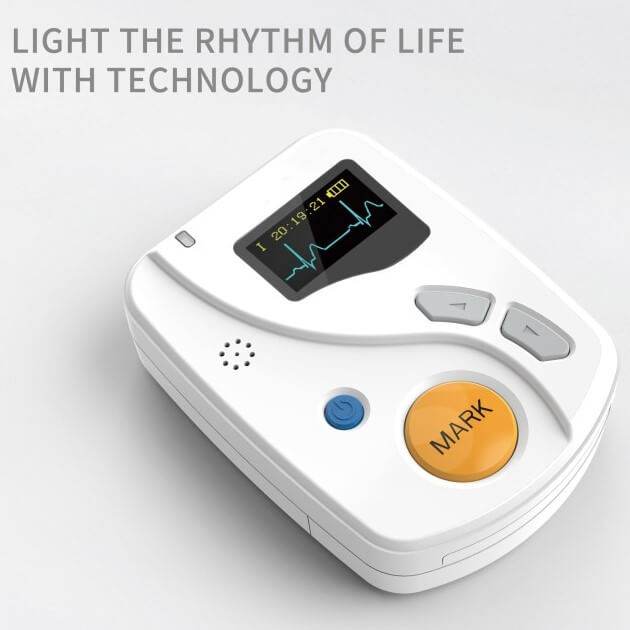

EKG System Heart Rate Tester | 12 Channel Dynamic ECG Holter 48/24h Analyzer

If you have a heart condition, you want a medical device that lets you measure and record heart rhythm and possible stress through a variety of advanced features and functions, yet be small enough to take it with you anywhere.

The ECG System Heart Rate Tester is packed with features and is one of the most advanced devices of its kind. It features 12 channel leads to measure EKG/ECG stress data to ensure the patient’s QRS rhythm waveform can be found accurately. Up to 2GB of data can be stored for a 24 hour period at zero compression. Its PC-compatible software includes more than 10 templates and analysis modules to help measure and record virtually any type of heart pathologic waveform. It also includes the ability to detect and analyze all types of heart pacemakers.

Recorder Features:

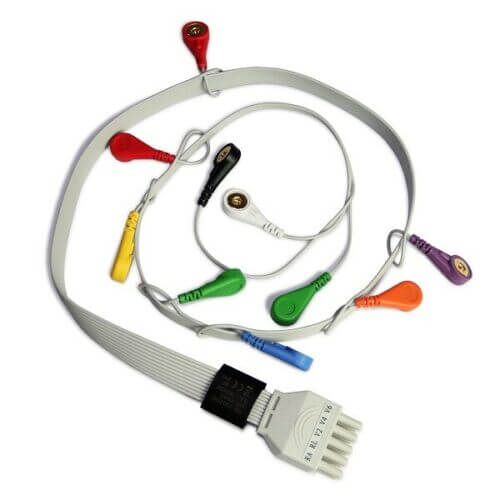

12 Channel Leads: The system can measure EKG/ECG stress data from multiple channels to ensure the patient’s QRS rhythm waveform can be found accurately, with no distortion. A flexible analysis channel selection function allows any channel to be selected as the main analysis channel.

24-Hour Monitoring & Recording: The system can continuously monitor and store heart rhythm ECG wave data for a 24 hour period. The types of the analysis system of HR variability include five minutes of short ECG and one hour or 24-hours of long ECG. It also has a data recording capacity of up to 2GB, so the original data can be stored with zero compression.

Small, Compact, & Durable: The medical recorder’s small, compact size and lightweight makes it fully portable to take it anywhere, yet it is dependable and durable, with both anti-jamming and anti-shock protection.

Software Features:

Multiple Pacing Analysis Templates: The system’s PC-compatible analysis software is included for free and can be accessed by the recorder via a USB 2.0 connection. The software has more than 10 templates with many user-defined modules that provide the ability to measure and distinguish between virtually any type of pathologic waveforms. Pacing templates include dual chamber, atrial, ventricular, and more.

Several Analysis Modules: The software’s analysis modules include the ability to measure QTD (QT dispersion), VCG (vector cardiogram), VLP (ventricular late potential), and TVCG (time vector cardiogram) rhythm, which provides more value in the analysis report.

Powerful Pacemaker Analysis: Measures and records the exact state of the pacemaker using a higher sampling frequency. This includes the ability to detect and analyze AAI, VVI, DDD, and all types of heart pacemakers.

Benefits:

Advanced Yet Portable Recorder: This ECG/EKG Holter-style recorder has many advanced medical heart rhythm measurement features, yet it is small, compact, and fully portable to take anywhere.

Software Is Loaded With Features: The heart rhythm software’s many included templates provide the ability to measure and record many different heart conditions as well as pacemaker performance.

Useful For Those With Heart Conditions: This medical device measures and records heart rhythm, which is useful for patients with arrhythmias, fibrillation, and other types of pathological waveforms.

Specifications:

• Model Number: TLC6000
• Number of channels: 3 channels
• Sampling rate: 10000Hz
• Sampling accuracy:12bit
• Recording time: 24h

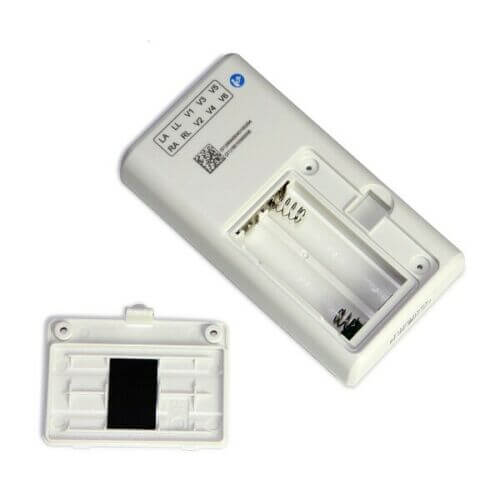

• Power: 2 AA batteries
• Interface: USB 2.0
• Scale voltage:1mV ± 5%
• Standard Sensitivity:10mm/mV ± 5%
• Noise level:≤30μV
• CMRR:≥60dB
• Feathers of low frequency: Time constant>3.2s
• Scan speed:25mm/s ± 5%
• Enduring polarization voltage: ±300mV
• Least measure signal: 50 µV p-p
• Screen type: OLED
• Screen resolution: 160x128
• Product safety type: Type B (Internally powered)
• Record Box Size: 111mm (L) X 60mm (W) X 25mm (H)
• Record Box Net Weight: about 102g

Get accurate heart rate readings by adding this to cart now!
